Home / Products / Brake Chamber-Disc / Single Port Long Stroke

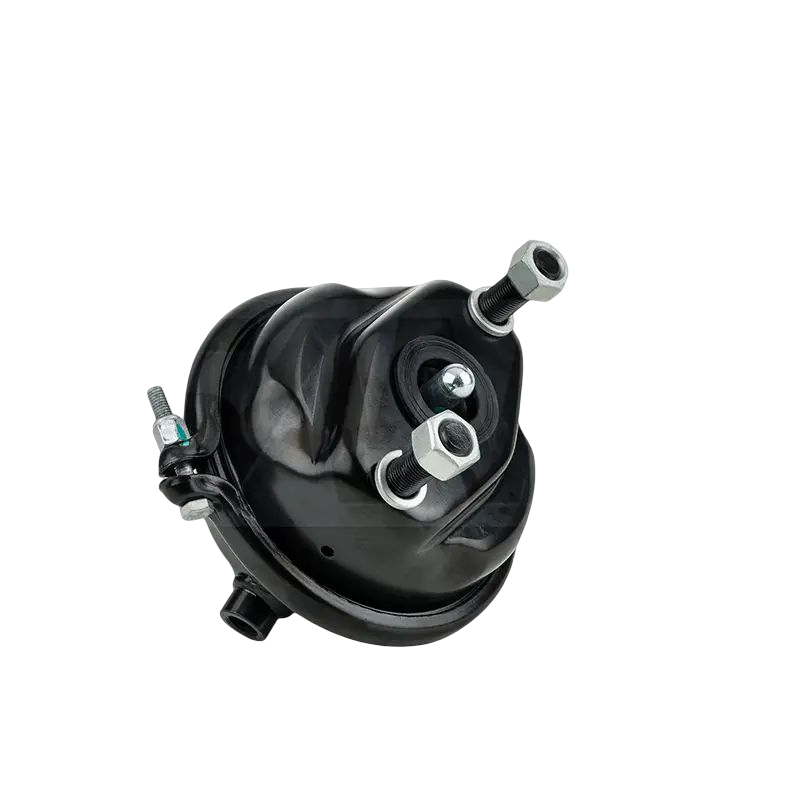

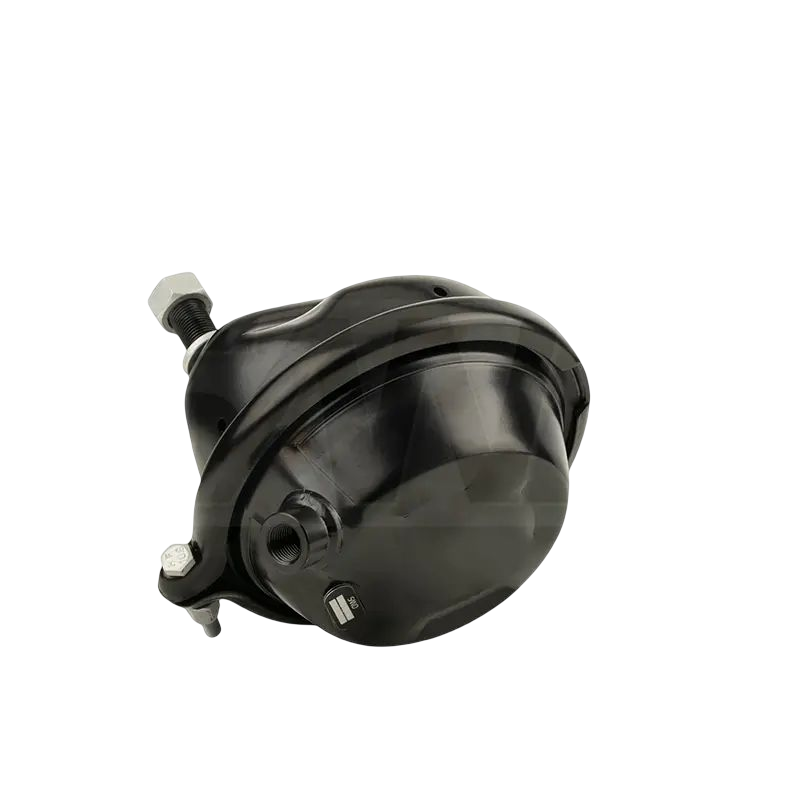

  • Single Port Long Stroke
  • Single Port Long Stroke
  • Single Port Long Stroke
  • Single Port Long Stroke
  • Single Port Long Stroke
  • Single Port Long Stroke

TYPE
SD No.
Cross Ref No.
Ref No.
S
STROKE
M1
side  port
M2
centre port
α
Port
β
Clamp
L
Length
Vehicle
12PL1
SD01015
BCM6201200
75
M16*1.5
M16*1.5+D
0
45
20
MERITOR
14PL1
SD01016
75
M16*1.5
/
45
0
20
16PL1
SD01011N01
4231047000
4231047110
75
M22*1.5
/
90
180
26
20PL1
SD01012N01
4231057010
75
M22*1.5
/
90
-167
20
MAN,NEOPLAN
22PL1
SD01018
BCM6202200
75
M16*1.5
M16*1.5+D
0
-45
20
24PL1
SD01013N
75
M22*1.5VOSS
/
0
45
20
SD01013N02
25PK0148E
M22*1.5
90
-167
26
SD01013N36
4231067000
BS3536-II37133
81.99804-2092
0
90
20
25PL1
SD01009N01
4235110100
75
M22*1.5
/
-90
167
26
27PL1
SD01020
BCM6202700
75
M16*1.5
M16*1.5+D
0
45
20
30PL1
SD01014
75
M16*1.5
M16*1.5+D
0
45
20


Device parameters

FAQ

  • How to deliver goods to customers?

    We usually ship by sea.  Jiaxing has an advantageous geographical location and is very close to Shanghai and Ningbo Port, making it very convenient to export by sea.  Of course, if the customer’s cargo is urgent, we can also ship it by air.

  • What is the payment method?

    FOB, CIF, DDP or other methods, select specific methods according to the specific situation, we generally pay 30% of the advance payment first, and 70% of the balance due to the bill of lading.  Most of our payment methods are T/T, of course, L/C is also acceptable.

  • How does your company guarantee product quality?

    First of all, for any newly developed product, every component must undergo strict inspections such as our performance test and life test. Secondly, during the production process, we will have corresponding inspections after each process.  For the final product, the air tightness is 100% fully inspected; Then, we have advanced and complete testing equipment in the industry: universal tensile testing machine, high and low temperature tester, static characteristic tester, life tester, water tightness test, coating tester, hardness tester, salt spray tester, vibration test Instrument, spring life tester, etc. Ensure a full range of testing requirements.

  • What are the main applications of your product?

    Our products are suitable for all commercial vehicles such as medium and heavy trucks, trailers, buses and heavy-duty construction vehicles.  Mainly include automobile trucks, construction machinery, trains and railways, mining machinery, forklifts, agricultural machinery and other industries.
