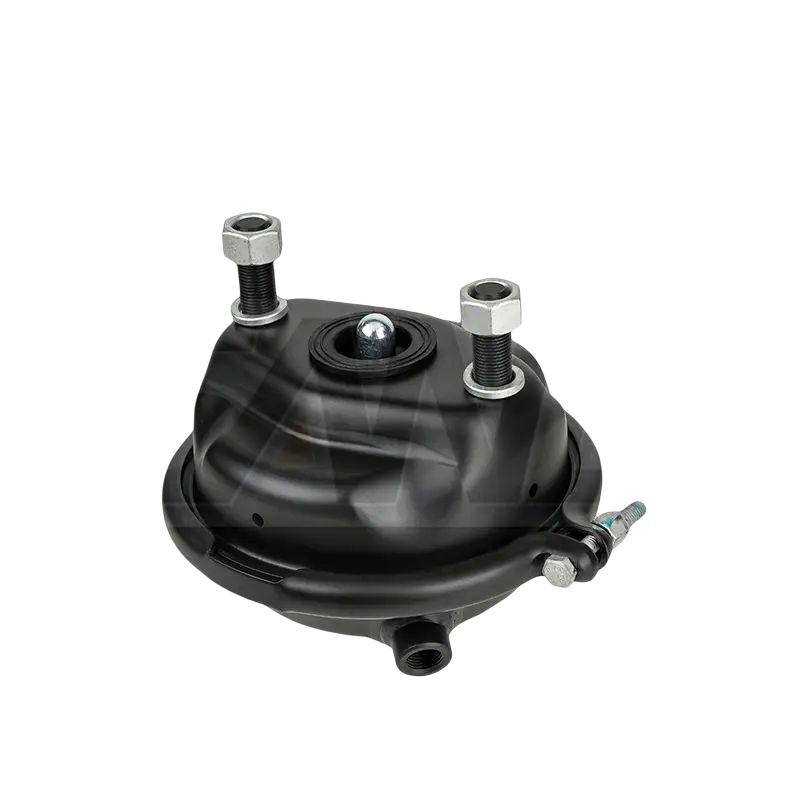

Single Port Brake Chamber-Disc

PREV：Single Port Long Stroke NEXT：Sealed

TYPE	SD No.	Cross Ref No.	Ref No.	S STROKE	M1 side port	M2 centre port	α Port	β Clamp	L Length	Vehicle
10P1	SD01021	BS3135-K000575		64	M16*1.5	M16*1.5	0	45	15	ERF
12P1	SD01005			64	M16*1.5	/	45	0	15	DAF,IEVCO
12P1	SD01005N	BS3207-II39193	41211031	64	M16*1.5	/	0	45	15	DAF,IEVCO
14P1	SD01006			64	M16*1.5	/	45	0	15	IEVCO
	SD01006N01	BS3275-II40358F	41211018		M16*1.5		37	-75
	SD01006N04	BS3284-K008309	41211032		M22*1.5VOSS		0	90
16P1	SD01001			64	M16*1.5	/	45	0	15	DAIMLER,EVOBUS, IEVCO ZF,SAF,DENNIS
	SD01001N01	BS3301-II30614	A0054202924 A0054203924		M22*1.5（VOSS)	/	45	0
	SD01001N02	BS3314-II37110 BS3326-II38466F BS3361-II38924F 4231040200	4454106530 4454107530 4231000000 0501316775		/	M16*1.5	/	90
	SD01001N05	BS3343 4235040020	4454108130		M16*1.5	/	-90	90
18P1	SD01007		CA18DBM	64	M16*1.5	/	45	0	15
18P1	SD01007N01	BS3350-II5229		64	M16*1.5	/	-90	45	15
20P1	SD01002			64	M16*1.5	/	45	0	15	DAIMLER,NEOPLAN,ZF,DENNIS
	SD01002N10	BS3402-II30616 BS3430-II38107F	00501314933 02.0327.74.00 HLP3519Q20-015				-60	-60
	SD01002N11	BS3403-II30617 BS3440-II38591F	00501314934 02.0327.75.00 HLP3519Q20-010				60	60
	SD01002N03		A3519010-11R				45	90
	SD01002N04		A3519010-11L				135	90
	SD01002N09	BS2402-K001294	81.51101-6505				0	180
	SD01002N21	BS2417-K006227			M22*1.5 VOSS		90	135
	SD01002N08		F-20DBK		Z3/8		90	-90
	SD01002N19	4231050200	81511016384 81511016384 1524853		/	M16*1.5	/	-90		MAN,DAF,SAF
	SD01002N20	BS3436-II38528F	4454106730		/	M16*1.5	/	90		MAN,DAF,SAF
22P1	SD01008			64	M16*1.5	/	45	0	15	BPW,SAF,DAIMLER
	SD01008N03	BS3453-II31099	52585		M16*1.5		-90	45	15
	SD01008N10		F-22DBK		Z3/8		90	-90	15
	SD01008N11	BS3462-II38529F	4454106830		/	M16*1.5	/	90	15
24P1	SD01003			64	M16*1.5	/	45	0	15
	SD01003N01		25PK0222E		M22*1.5VOSS		45	0
	SD01003N	4235061400 4235061420 BS2500-II38472F BS2503-II38475F	1542893 1427475 1427478		M16*1.5		-45	0		DAF
	SD01003N09	BS3500-II15227 BS3538-II37127	81.51101-6466; 41031460 41211460				90	90
	SD01003N51		35190106770				-30	0
	SD01003N09		F-24DBK-702		Z3/8		45	-90
27P1	SD01010	BS3551-II31100		64	M16*1.5	/	-90	45	15
30P1	SD01004	4235070000		64	M16*1.5	/	90	45	15

Device parameters

FAQ

How to deliver goods to customers?

We usually ship by sea. Jiaxing has an advantageous geographical location and is very close to Shanghai and Ningbo Port, making it very convenient to export by sea. Of course, if the customer’s cargo is urgent, we can also ship it by air.
What is the payment method?

FOB, CIF, DDP or other methods, select specific methods according to the specific situation, we generally pay 30% of the advance payment first, and 70% of the balance due to the bill of lading. Most of our payment methods are T/T, of course, L/C is also acceptable.
How does your company guarantee product quality?

First of all, for any newly developed product, every component must undergo strict inspections such as our performance test and life test. Secondly, during the production process, we will have corresponding inspections after each process. For the final product, the air tightness is 100% fully inspected; Then, we have advanced and complete testing equipment in the industry: universal tensile testing machine, high and low temperature tester, static characteristic tester, life tester, water tightness test, coating tester, hardness tester, salt spray tester, vibration test Instrument, spring life tester, etc. Ensure a full range of testing requirements.
What are the main applications of your product?

Our products are suitable for all commercial vehicles such as medium and heavy trucks, trailers, buses and heavy-duty construction vehicles. Mainly include automobile trucks, construction machinery, trains and railways, mining machinery, forklifts, agricultural machinery and other industries.
