Home / Products / Brake Chamber-Wedge / J-Series Regular Release

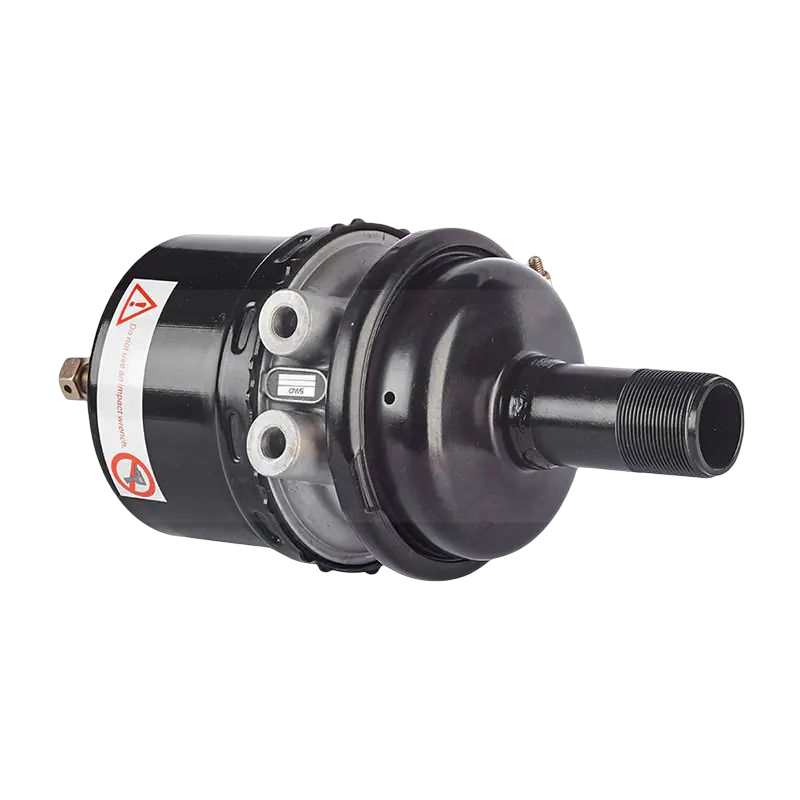

  • J-Series Regular Release
  • J-Series Regular Release

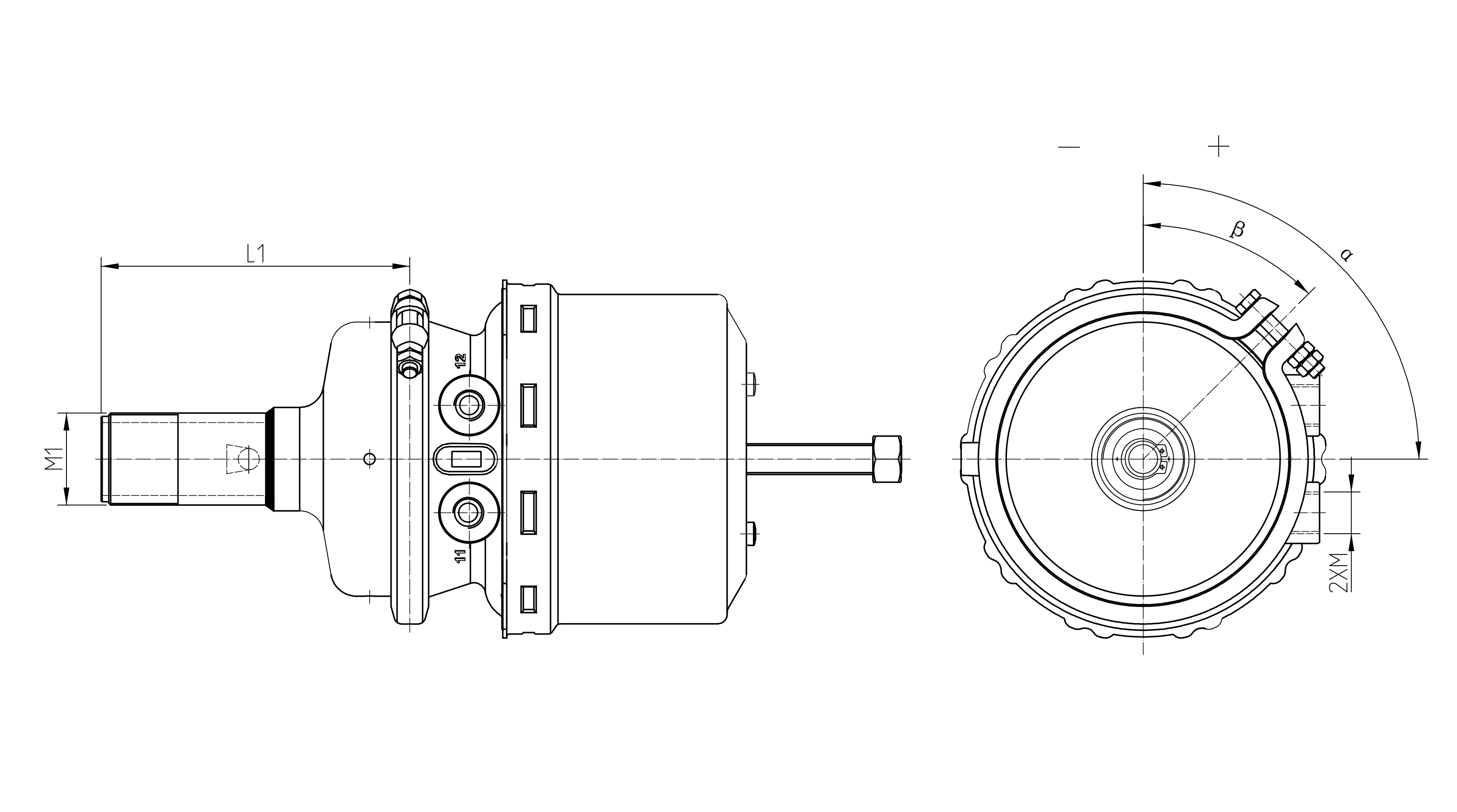

TYPE
SD NUMBER
OE KNORR/WABCO
PART NUMBER
M
α
β
F
L1
M3
VEHICLE
Q9/16J
SD36001
BTP36001
M16*1.5
0
180
6800
118
Q10/516J
SD36006
M16*1.5
0
60
150
SD36006N01
M22*1.5
Q12/16J
SD36002
4254262010
M22*1.5VOSS
0
-90
6400
113
M48*1.5
SD36002N03
100.020.024
M16*1.5
-90
6800
160
SD36002N04
4254540710
M22*1.5
180
176
M48*1.5
4254540790
Q18/16J
SD36007
4254299010
 M16*1.5
0
155
6950
150
M48*2
Q16/16J
SD36003
4254289000
 M16*1.5
0
155
6950
150
M48*2
Q14/24J
SD36011
4254561000
M22*1.5VOSS
0
180
7950
148
M48*1.5
Q16/24J
SD36004
4253571000
 M16*1.5
0
155
6950
150
M48*2
SD36004N01
M22*1.5VOSS
90
180
7800
161
SD36004N02
M16*1.5
180
161
Q18/24J
SD36008
SD36-18/24
M22*1.5VOSS
0
45
7800
158
M48*2
SD36008N01
180
159
SD36008N02
4254571000
4254571000
148
Q20/24J
SD36009
M16*1.5
0
135
7800
160
M48*2
SD36009N01
4253332000
4253332010
4253332030
4253332040
4253332120
180
Q22/24J
SD36010
100.020.036
M16*1.5
0
135
7800
160
M48*2
Q24/24J
SD36005
M22*1.5VOSS
0
135
160
M48*2
IVECO

Device parameters

FAQ

  • How to deliver goods to customers?

    We usually ship by sea.  Jiaxing has an advantageous geographical location and is very close to Shanghai and Ningbo Port, making it very convenient to export by sea.  Of course, if the customer’s cargo is urgent, we can also ship it by air.

  • What is the payment method?

    FOB, CIF, DDP or other methods, select specific methods according to the specific situation, we generally pay 30% of the advance payment first, and 70% of the balance due to the bill of lading.  Most of our payment methods are T/T, of course, L/C is also acceptable.

  • How does your company guarantee product quality?

    First of all, for any newly developed product, every component must undergo strict inspections such as our performance test and life test. Secondly, during the production process, we will have corresponding inspections after each process.  For the final product, the air tightness is 100% fully inspected; Then, we have advanced and complete testing equipment in the industry: universal tensile testing machine, high and low temperature tester, static characteristic tester, life tester, water tightness test, coating tester, hardness tester, salt spray tester, vibration test Instrument, spring life tester, etc. Ensure a full range of testing requirements.

  • What are the main applications of your product?

    Our products are suitable for all commercial vehicles such as medium and heavy trucks, trailers, buses and heavy-duty construction vehicles.  Mainly include automobile trucks, construction machinery, trains and railways, mining machinery, forklifts, agricultural machinery and other industries.
