Home / Products / Brake Chamber-Wedge / F-Series Regular Release

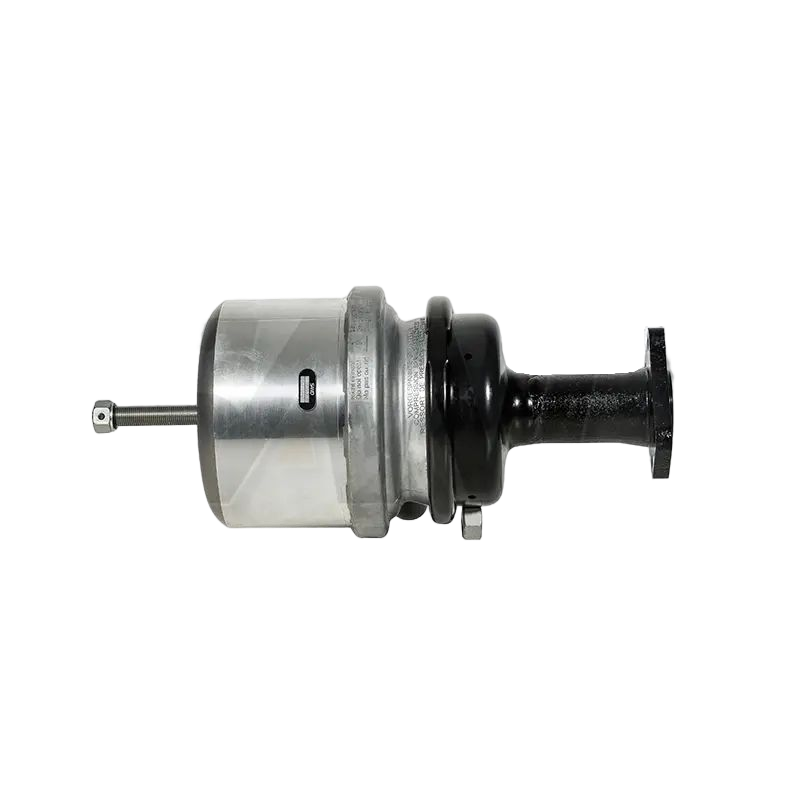

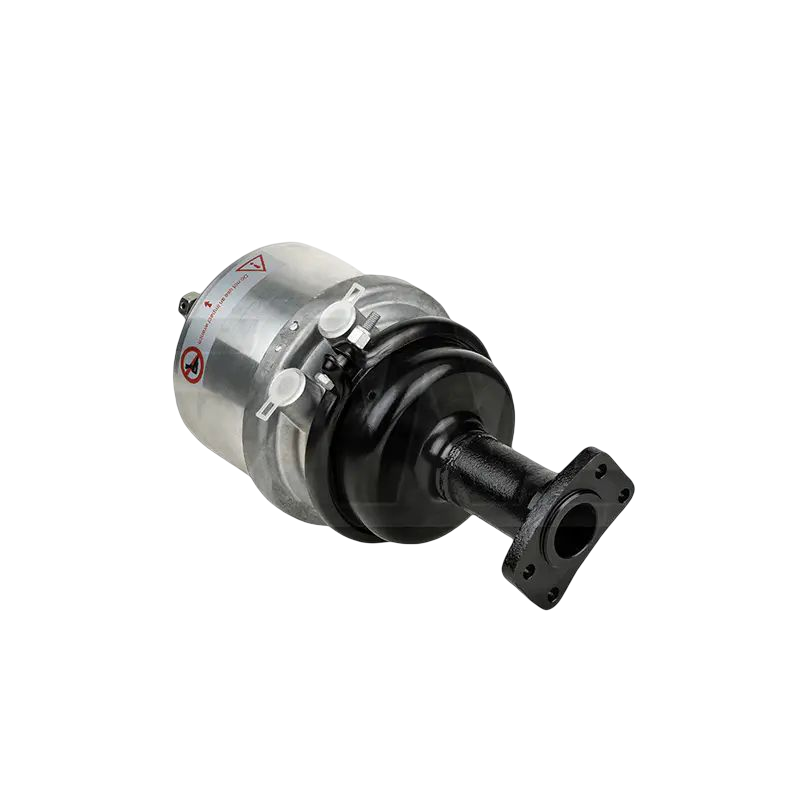

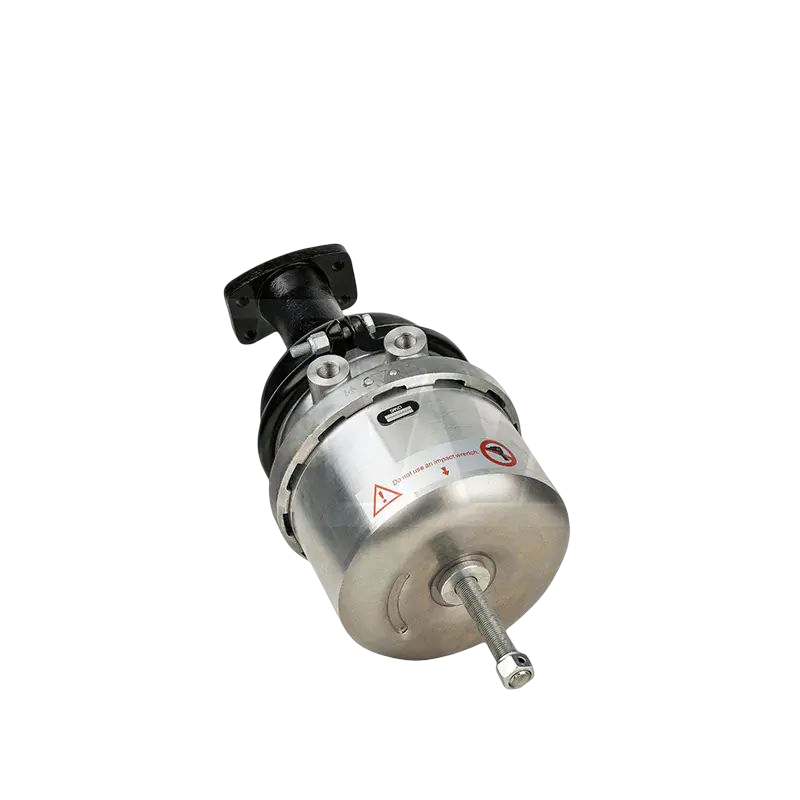

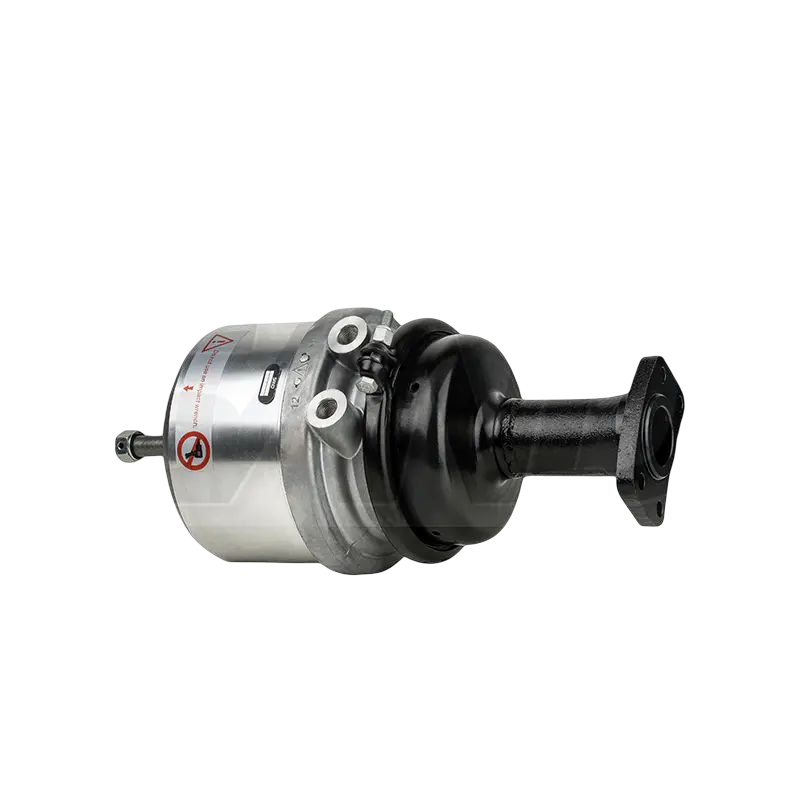

  • F-Series Regular Release
  • F-Series Regular Release
  • F-Series Regular Release
  • F-Series Regular Release
  • F-Series Regular Release
  • F-Series Regular Release
  • F-Series Regular Release
  • F-Series Regular Release

TYPE
SD NUMBER
OE KNORR/WABCO
PART NUMBER
M
α
β
F
L1
FLANGE SHAPE
VEHICLE
K10.516F1
SD307KF
BY9155-II18895
BY9159-II34174
A 005 420 1524
A 005 420 0624
M22*1.5VOSS
48
-45
141
curving
SD307KF01
BY9156-II18944
BY9160-II34175
A 005 420 1424
A 005 420 0524
-48
45
K12/16F1
SD305KF
BY9210-II18946
A 005 420 16 24
M22*1.5VOSS
48
-45
141
curving
SD305KF01
BY9209-II18945
A 005 420 17 24
-48
45
SD306KF
BY9223-K004056
A 020 420 88 18
48
-45
SD305KF02
BY9224-K004057
A 020 420 87 24
-48
45
SD307KF
BY9227-K004058
A 020 420 90 18
65
-45
SD305KF03
BY9228-K004059
A 020 420 89 18
-65
45
SD308KF
BY9240-K014675
A 021 420 80 18
40
-45
SD305KF04
BY9241-K014676
A 021 420 79 18
-40
45
K14/24F1
SD301KF
BY9263-II30393000
M16*1.5
0
45
170
curving
K16/24F1
SD302KF
BY9321-II35117
M16*1.5
0
45
170
straight
RENAULT
K20/24F1
SD303KF
BY9409
M22*1.5VOSS
0
135
181
straight
K22/24F1
SD304KF
BY9461
M22*1.5VOSS
0
45
151
straight

Device parameters

FAQ

  • How to deliver goods to customers?

    We usually ship by sea.  Jiaxing has an advantageous geographical location and is very close to Shanghai and Ningbo Port, making it very convenient to export by sea.  Of course, if the customer’s cargo is urgent, we can also ship it by air.

  • What is the payment method?

    FOB, CIF, DDP or other methods, select specific methods according to the specific situation, we generally pay 30% of the advance payment first, and 70% of the balance due to the bill of lading.  Most of our payment methods are T/T, of course, L/C is also acceptable.

  • How does your company guarantee product quality?

    First of all, for any newly developed product, every component must undergo strict inspections such as our performance test and life test. Secondly, during the production process, we will have corresponding inspections after each process.  For the final product, the air tightness is 100% fully inspected; Then, we have advanced and complete testing equipment in the industry: universal tensile testing machine, high and low temperature tester, static characteristic tester, life tester, water tightness test, coating tester, hardness tester, salt spray tester, vibration test Instrument, spring life tester, etc. Ensure a full range of testing requirements.

  • What are the main applications of your product?

    Our products are suitable for all commercial vehicles such as medium and heavy trucks, trailers, buses and heavy-duty construction vehicles.  Mainly include automobile trucks, construction machinery, trains and railways, mining machinery, forklifts, agricultural machinery and other industries.
