Home / Products / Brake Chamber-S-Cam / S-cam Rhombus Cover

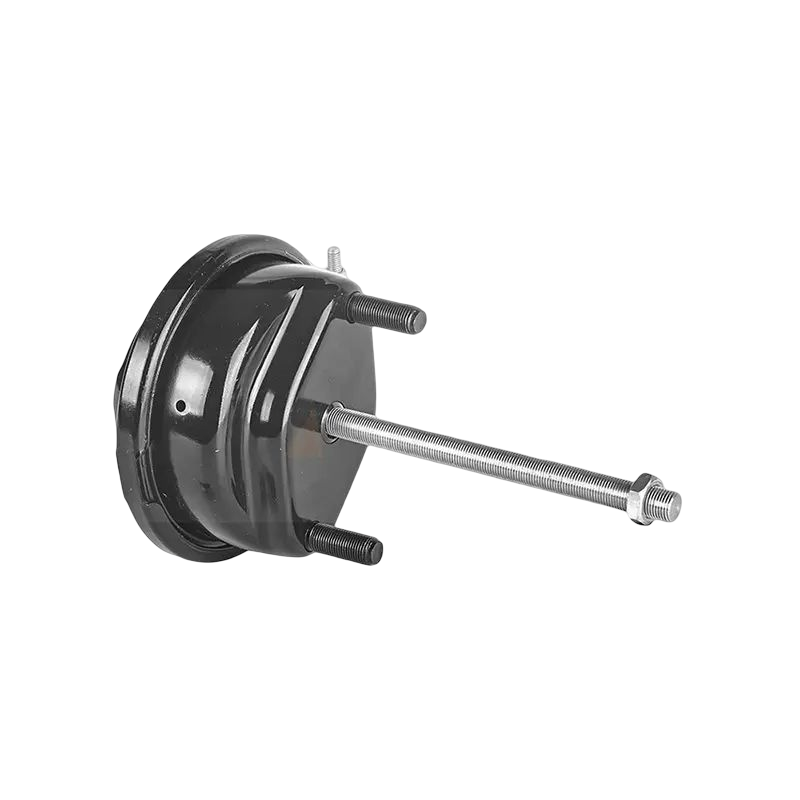

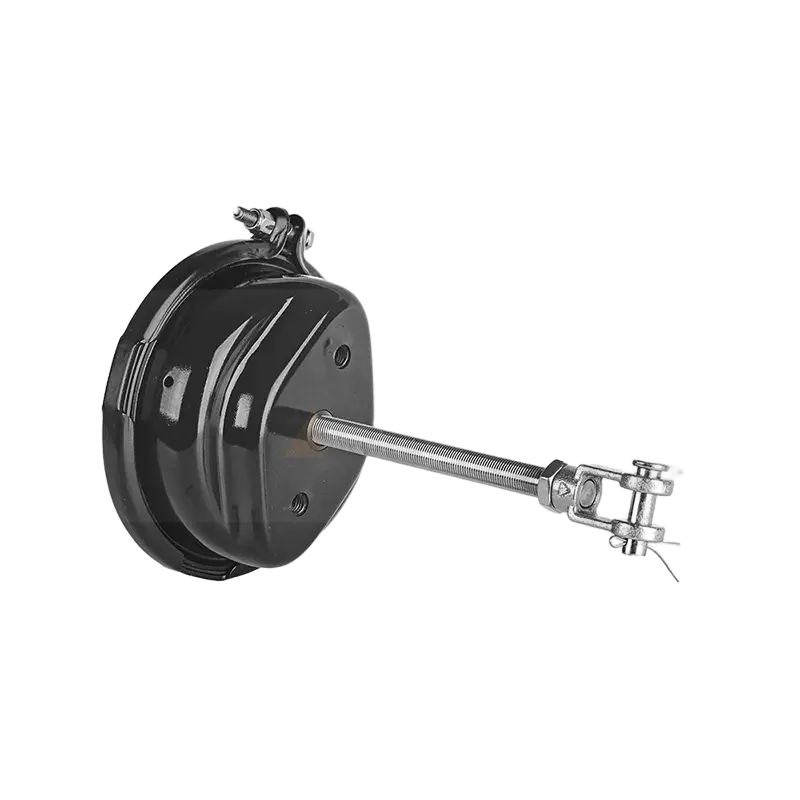

  • S-cam Rhombus Cover
  • S-cam Rhombus Cover
  • S-cam Rhombus Cover
  • S-cam Rhombus Cover

TYPE SD NUMBER OE KNORR/WABCO PART NUMBER STROKE M1 M2 α β L1 L2
16G SD92001 M14*1.5 M14*1.5+D 0 90 165
20G SD92002L CH3519KQG010N4 / Z1/4 / 60 225
SD92002R CH3519KQG020N4 -60
24G SD92004 57 / M16*1.5 / 60 225
SD92004D M14*1.5 M14*1.5+D 0 90 65
30G SD92003 4231070100 64 M16*1.5 M16*1.5 0 90 58
20GT SD92002T / Z1/4 / 45 208
24GC SD92004C 4231060410 20438473  1618593 65 M16*1.5 M16*1.5 90 45 58

Device parameters

FAQ

  • How to deliver goods to customers?

    We usually ship by sea.  Jiaxing has an advantageous geographical location and is very close to Shanghai and Ningbo Port, making it very convenient to export by sea.  Of course, if the customer’s cargo is urgent, we can also ship it by air.

  • What is the payment method?

    FOB, CIF, DDP or other methods, select specific methods according to the specific situation, we generally pay 30% of the advance payment first, and 70% of the balance due to the bill of lading.  Most of our payment methods are T/T, of course, L/C is also acceptable.

  • How does your company guarantee product quality?

    First of all, for any newly developed product, every component must undergo strict inspections such as our performance test and life test. Secondly, during the production process, we will have corresponding inspections after each process.  For the final product, the air tightness is 100% fully inspected; Then, we have advanced and complete testing equipment in the industry: universal tensile testing machine, high and low temperature tester, static characteristic tester, life tester, water tightness test, coating tester, hardness tester, salt spray tester, vibration test Instrument, spring life tester, etc. Ensure a full range of testing requirements.

  • What are the main applications of your product?

    Our products are suitable for all commercial vehicles such as medium and heavy trucks, trailers, buses and heavy-duty construction vehicles.  Mainly include automobile trucks, construction machinery, trains and railways, mining machinery, forklifts, agricultural machinery and other industries.
