Home / Products / Brake Chamber-S-Cam / S-cam Brake Chamber

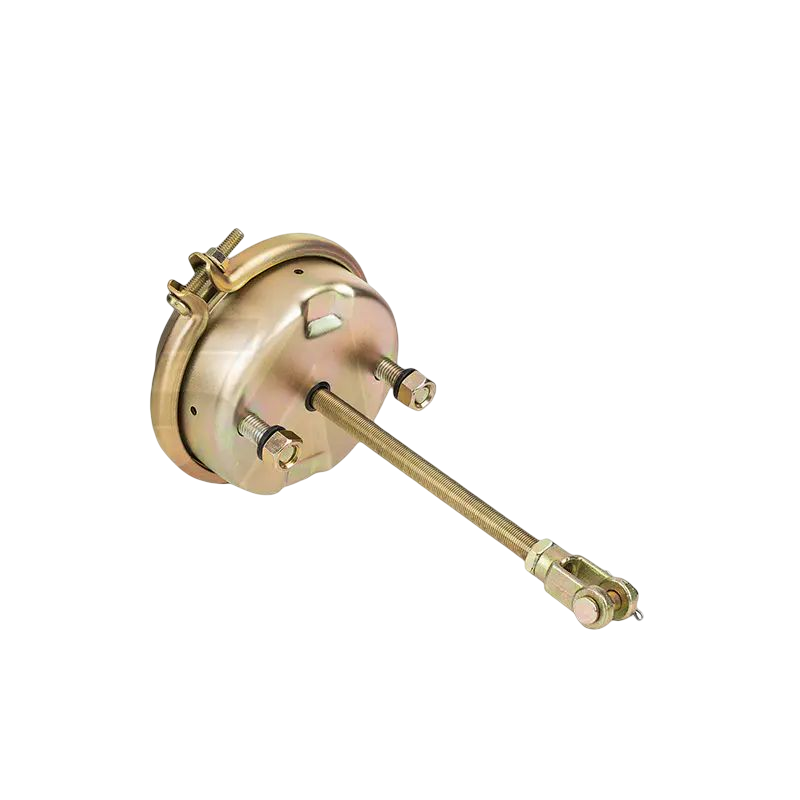

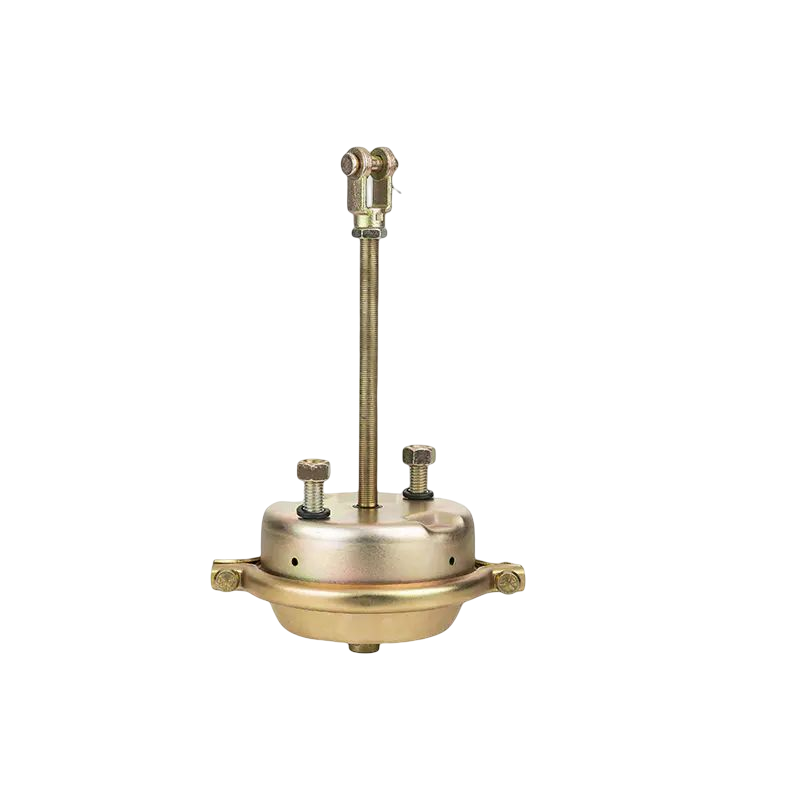

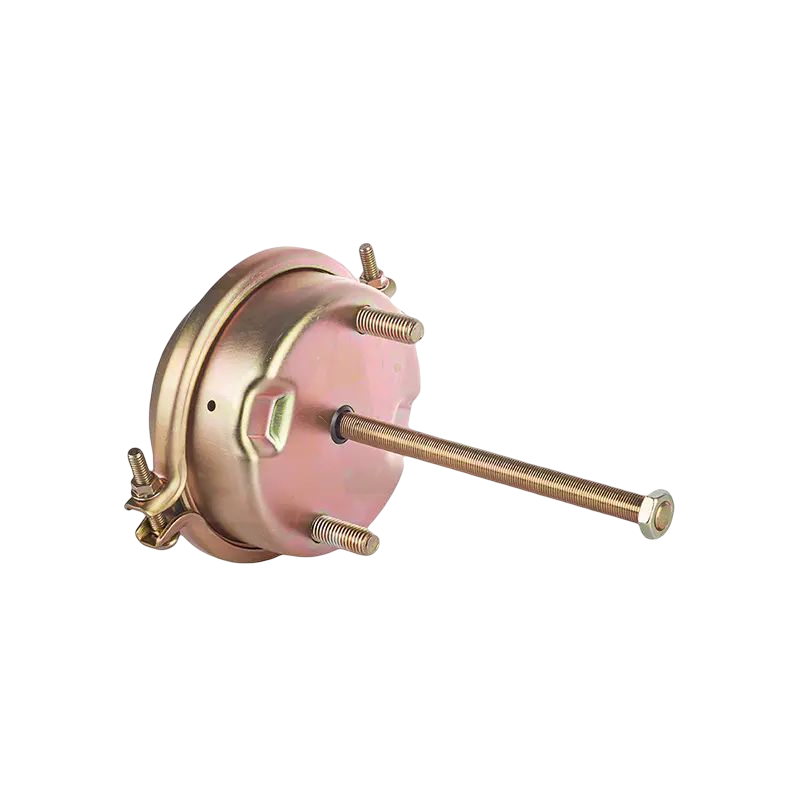

  • S-cam Brake Chamber
  • S-cam Brake Chamber
  • S-cam Brake Chamber
  • S-cam Brake Chamber
  • S-cam Brake Chamber
  • S-cam Brake Chamber
  • S-cam Brake Chamber
  • S-cam Brake Chamber

TYPE SD NUMBER OE KNORR/WABCO PART NUMBER STROKE M1 M2 α β L1 L2
12G SD51006 57 Z1/4 Z1/4+D 0 45 225
16G SD51001 64 / Z1/4 / 45 240
SD51001D 64 Z3/8 Z3/8 -90 45 266
16GL SD51001L BZ3372-II33455 75 1/4NPTF+D 1/4NPTF 90 45 228
20G SD51002 57 / 3/8"NPTF / 90 350
SD51002N01 3/8"NPTF 60 225
SD51002N03 Z1/4 45 250
SD51002N04 3/8"NPTF / 90 45 275
SD51002D 3/8"NPTF+D -90 45 222.5
24G SD51003N01 57 / Z3/8 / 45 230
SD51003N03 60 225
SD51003N05 1024L Z1/4 45 235
SD51003D Z3/8 Z3/8+D -90 222.5
SD51003D01 Z3/8 266
24GL SD51007D01 75 Z1/4 Z1/4 0 90 222
SD51007D02 A2671 Z1/4+D -45 200
30G SD51004 64 / 3/8"NPTF / 45 290
SD51004N01 Z1/4 272
SD51004N03 350
SD51004N04 3/8"NPTF / 270
SD51004N 3/8"NPTF / 90 45 239.5
SD51004D 3/8"NPTF+D -90 45 222.5
SD51004D01 256
SD51004D02 3/8"NPTF+D 3/8"NPTF 135 45 248
SD51004D03 0 230

Device parameters

FAQ

  • How to deliver goods to customers?

    We usually ship by sea.  Jiaxing has an advantageous geographical location and is very close to Shanghai and Ningbo Port, making it very convenient to export by sea.  Of course, if the customer’s cargo is urgent, we can also ship it by air.

  • What is the payment method?

    FOB, CIF, DDP or other methods, select specific methods according to the specific situation, we generally pay 30% of the advance payment first, and 70% of the balance due to the bill of lading.  Most of our payment methods are T/T, of course, L/C is also acceptable.

  • How does your company guarantee product quality?

    First of all, for any newly developed product, every component must undergo strict inspections such as our performance test and life test. Secondly, during the production process, we will have corresponding inspections after each process.  For the final product, the air tightness is 100% fully inspected; Then, we have advanced and complete testing equipment in the industry: universal tensile testing machine, high and low temperature tester, static characteristic tester, life tester, water tightness test, coating tester, hardness tester, salt spray tester, vibration test Instrument, spring life tester, etc. Ensure a full range of testing requirements.

  • What are the main applications of your product?

    Our products are suitable for all commercial vehicles such as medium and heavy trucks, trailers, buses and heavy-duty construction vehicles.  Mainly include automobile trucks, construction machinery, trains and railways, mining machinery, forklifts, agricultural machinery and other industries.
