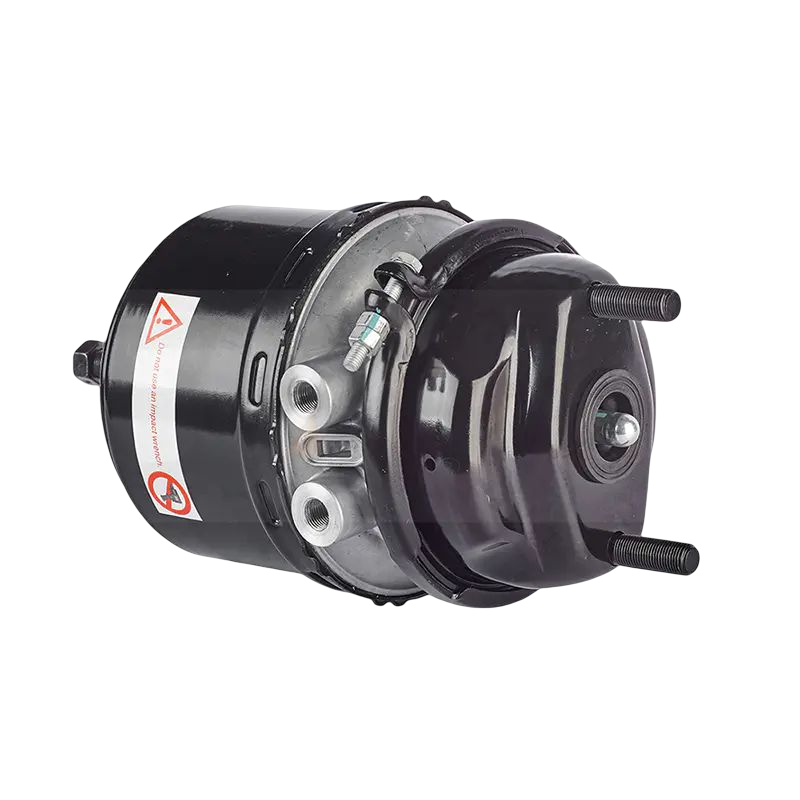

Regular Release T16 Rear Chamber

PREV：Regular Release T24 Rear Chamber NEXT：Regular Release Brake Chamber Disc

TYPE	SD NUMBER	OE KNORR/WABCO	PART NUMBER	M	α	β	F	L	VEHICLE
Q10/16P	SD06051			M22*1.5VOSS	0	45	6200	15
	SD06051N01	9254663040 9254863040	A0184204318 A0204201218		125	0			BENZ
	SD06051N05	9254663020 9254863020 9254863050	A0174202818 A0194204618		0	-135
	SD06051N06	9254663010 9254863010	A0154201218 A0204200918		58	-90
Q12/16P	SD06052	9254661000 9254861000 9254861060 9254861010 9254661010	A0154201418 A0194204718 A0214500118 A0154209918	M22*1.5VOSS	0	-135	6200	15	BENZ ACTROS ATEGO AXOR 2
	SD06052N	9254861120	A0214202818		90	180
		9254861100	A0214202618		60	-35
		9254861110	A0214202718		-60	35
	SD06052N05	9254661030 9254861030 9254861080	A0164207218 A0194204818		27	-90
	SD06052A01	9254261000	81504106642 81504106643 81504109643 81504106664 81504106645 510422315 1505436		-90	-150	7400		MAN RENAULT DAF
Q14/16P	SD06008	9254880640	A0224202918	M22*1.5VOSS	0	-135	62OO	15	BENZ
	SD06008N02	9254880600	A0204206718 1523676 81504106576		85	-90			BENZ DAF MAN
	SD06008N03	9254880630 9254680330	A0194201918		-90	0			BENZ
	SD06008N05	9254680300	A0194201418		90	-90			BENZ
	SD06008A02	9254262000 9254263000 9254864200	1505437 1523960 81504106575 81504106577 81504109575 81504106641 81504106579 5010422317 7421073708		-90	-150	7400		DAF MAN RENAULT
Q16/16P	SD06001	9254644520	DAF 1506403	M16*1.5	0	90	6200	15	DAF
	SD06001N01	9254644500	A0174208818 1505447 0203278600 336679 334655 5812867 A3A827201 M076154		-45	90			BENZ EVOBUS DAF BPW KOGEL KRONE FRUEHAUF
	SD06001N05	9254644610	4.454.1047.00		90	-110			BPW
	SD06001N06	9254644600	4.454.1046.00		0	20
	SD06001N03	9254864000 9254664000	A0204207218 A0154201618	M22*1.5VOSS	85	-90			BENZ ACTROS ATEGO AXOR2 ECONIC
	SD06001N13		35302410130	NPT1/4	90	90			BYD
	SD06001N13		35302410140	NPT1/4	90	90			BYD
	SD06001A01	9254248000	1505435 81504106581 81504106583 500337674 5010422319 443219X600	M22*1.5	-90	-150	7400		DAF MAN IVECO RENAULT NISSAN
Q24/16P	SD06007			M22*1.5VOSS	0	180	6200	15

Device parameters

FAQ

How to deliver goods to customers?

We usually ship by sea. Jiaxing has an advantageous geographical location and is very close to Shanghai and Ningbo Port, making it very convenient to export by sea. Of course, if the customer’s cargo is urgent, we can also ship it by air.
What is the payment method?

FOB, CIF, DDP or other methods, select specific methods according to the specific situation, we generally pay 30% of the advance payment first, and 70% of the balance due to the bill of lading. Most of our payment methods are T/T, of course, L/C is also acceptable.
How does your company guarantee product quality?

First of all, for any newly developed product, every component must undergo strict inspections such as our performance test and life test. Secondly, during the production process, we will have corresponding inspections after each process. For the final product, the air tightness is 100% fully inspected; Then, we have advanced and complete testing equipment in the industry: universal tensile testing machine, high and low temperature tester, static characteristic tester, life tester, water tightness test, coating tester, hardness tester, salt spray tester, vibration test Instrument, spring life tester, etc. Ensure a full range of testing requirements.
What are the main applications of your product?

Our products are suitable for all commercial vehicles such as medium and heavy trucks, trailers, buses and heavy-duty construction vehicles. Mainly include automobile trucks, construction machinery, trains and railways, mining machinery, forklifts, agricultural machinery and other industries.
