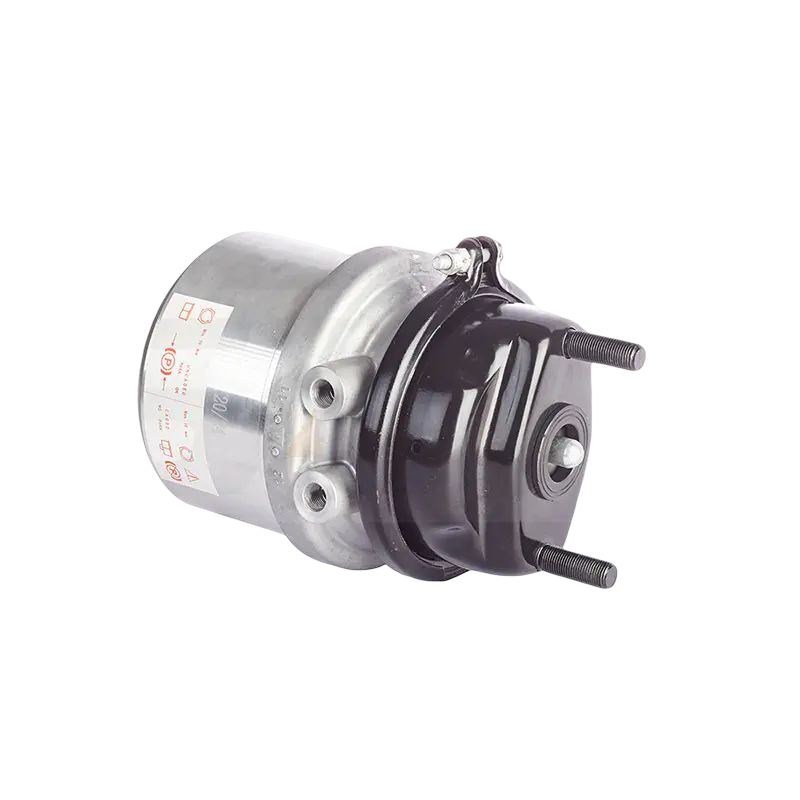

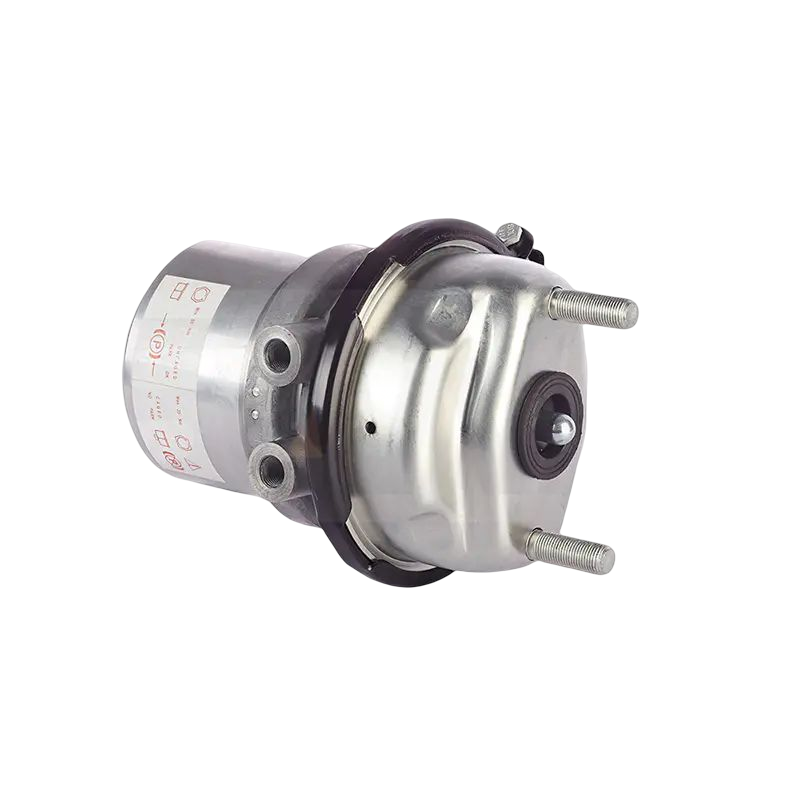

Inner Release

PREV：Integrated Brake Chamber Disc NEXT：Inner Release

Compact structure, and small space occupation,Easy understand.

Use the patented "latest generation wind-off released bolt ,the structure occupy less space ,can be applied to special axle which with limited space,only this product can be installed to the space limited axle,meantime it has more applicable,also can fit on ordinary axle.With the parking indicator, easy to see whether the spring is released,Easy understand, make sure the correct install and repair.

>> Applications <<

TYPE	SD NUMBER	OE KNORR/WABCO	PART NUMBER	M	α	β	F	L	VEHICLE
K22/14P3	SD06107	BS9468-II39613F	41211227	M16*1.5	90	135	4580	15	IVECO
K24/14P3	SD06101	SD0620	56435A	M22*1.5VOSS	90	-135	5200	15
K24/14P3	SD06101N01	BS8519-II39614F	4121 1228 9947 8016	M16*1.5	90	135	4580	15	IVECO
K16/24P3	SD06103			M22*1.5VOSS	90	180	7800	15
K18/24P3	SD06104			M22*1.5VOSS	90	180	7800	15
K20/24P3	SD06105			M22*1.5VOSS	90	180	7800	15
K24/24P3	SD06106			M22*1.5VOSS	90	180	7800	15
	SD06106N01	BS9574-K013773	95340-80500	M16*1.5	-90	-135	7580	15
	SD06106N03	BS8510-K011682	95140-7K000	M16*1.5	0	-45	7580	15
K24/30P3	SD06102N01			M22*1.5VOSS	90	135	10500	15
K24/30P3	SD06102			M16*1.5	90	135	10500	15

Device parameters

FAQ

How to deliver goods to customers?

We usually ship by sea. Jiaxing has an advantageous geographical location and is very close to Shanghai and Ningbo Port, making it very convenient to export by sea. Of course, if the customer’s cargo is urgent, we can also ship it by air.
What is the payment method?

FOB, CIF, DDP or other methods, select specific methods according to the specific situation, we generally pay 30% of the advance payment first, and 70% of the balance due to the bill of lading. Most of our payment methods are T/T, of course, L/C is also acceptable.
How does your company guarantee product quality?

First of all, for any newly developed product, every component must undergo strict inspections such as our performance test and life test. Secondly, during the production process, we will have corresponding inspections after each process. For the final product, the air tightness is 100% fully inspected; Then, we have advanced and complete testing equipment in the industry: universal tensile testing machine, high and low temperature tester, static characteristic tester, life tester, water tightness test, coating tester, hardness tester, salt spray tester, vibration test Instrument, spring life tester, etc. Ensure a full range of testing requirements.
What are the main applications of your product?

Our products are suitable for all commercial vehicles such as medium and heavy trucks, trailers, buses and heavy-duty construction vehicles. Mainly include automobile trucks, construction machinery, trains and railways, mining machinery, forklifts, agricultural machinery and other industries.
