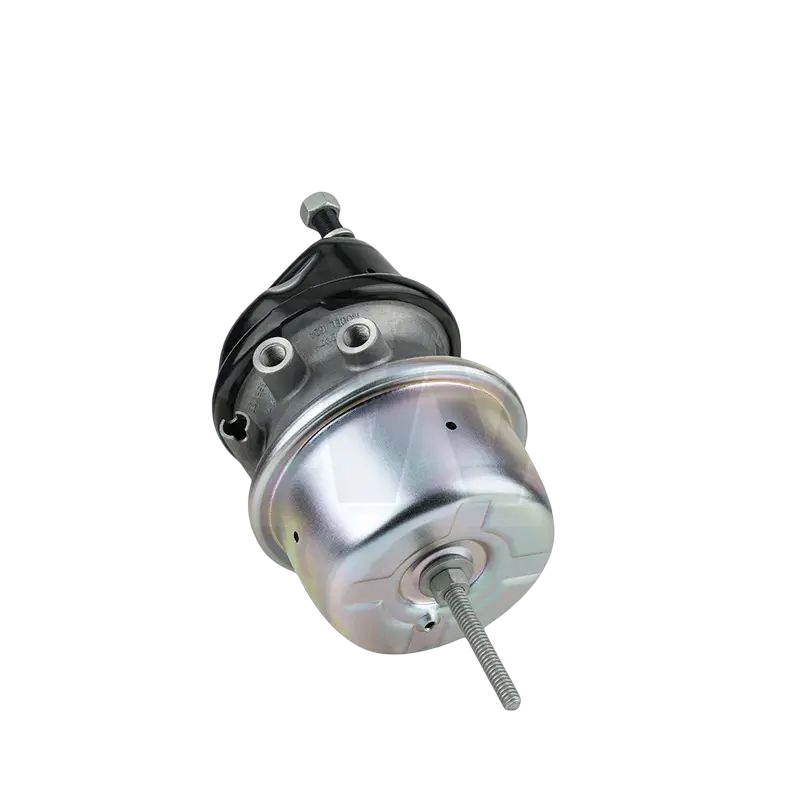

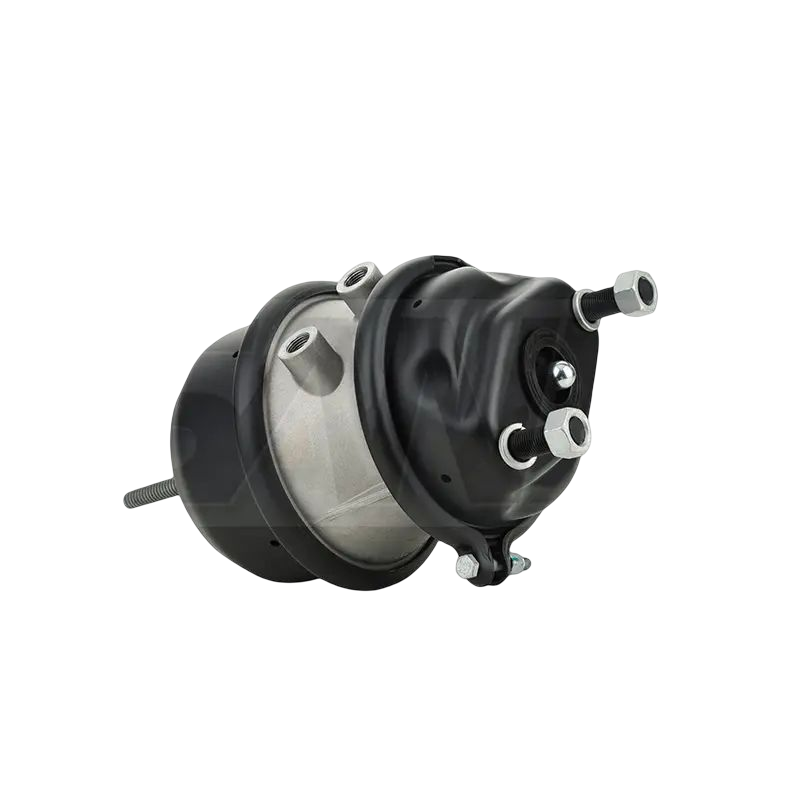

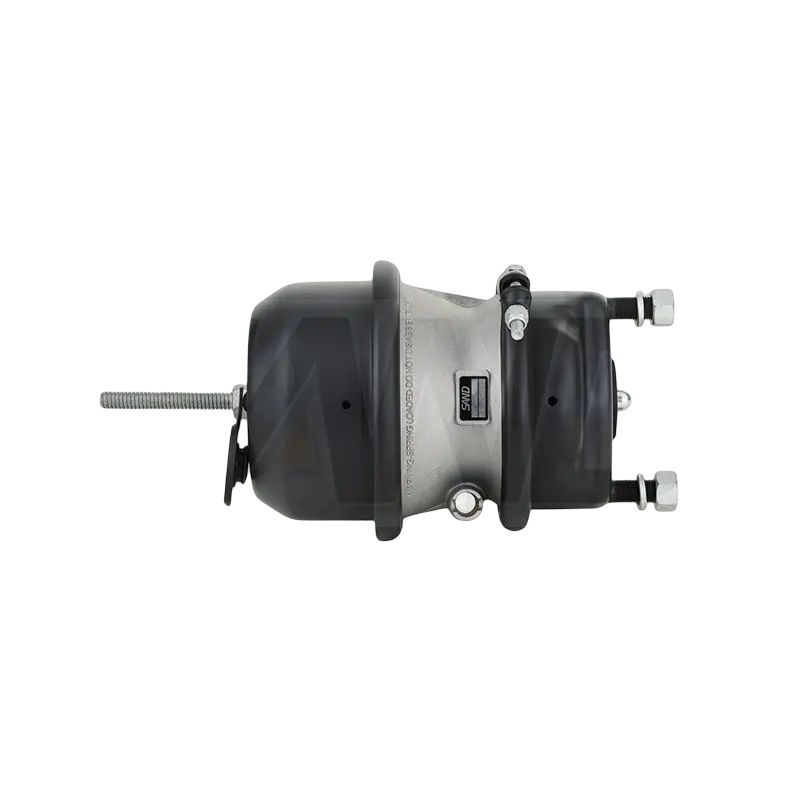

Half Sealed

High safety,the parking portion use sealed structure. the sealed chamber has better sealing performance ,more stable.

>> Applications <<
  • Half Sealed
  • Half Sealed
  • Half Sealed
  • Half Sealed
  • Half Sealed
  • Half Sealed
  • Half Sealed
  • Half Sealed

TYPE SD NUMBER OE Number PART NUMBER M α β F L VEHICLE
14/24P SD02004 05.444.38.01.0 M16*1.5 60 135 5600 15 BPW
SD02004N  05.444.38.02.0 -60 -135
16/24P SD02001
9253840100
9253840010
05.444.40.01.0
05.444.40.01.3
05.444.40.02.0
05.444.40.07.0
05.444.40.08.0
4454104830
4454107730
4454107764
4454107630
4454107230
1351624004
M16*1.5 90 -45 5800 15 SAF
BPW
HALDEX
SD02001N03 9253840110 45 -90 SAF
BPW
SD02001N
BS7303-K026893
BS7303-II38119
M16*1.5 -90 45
SD02001N01
BS7304-K026894
BS7304-II38524
BS7309-K026896
BS7309-II39355
4454107230
4454107730
054998
114286
1097975
M16*1.5 90 -90 SAF
SCHMITZ
SD02001N02
BS7305-K026895
BS7310-K026897
4454107130         M16*1.5 0 0 5600 SAF
SD02001N11 Z3/8 90 -45 SAF
BPW
SD02001R 9253840160 M16*1.5 -90 135 5900
18/24P SD02006 BS7750-K026902 M16*1.5 -90 45 5700 15
SD02006N03 BS7751-K026902 90
SD02006N07 BS7755-K026904 120 120
SD0200605 9254730020 0 180 5900
SD02006N01
05.444.42.02.0
05.444.42.04.0
-60 -135 BPW
SCHMITZ
20/24P SD02002 9253801010
05.444.44.01.0
05.444.44.02.0
05.444.44.02.3
04454105130
04454107830
04454107930
04454107964
1352024003
1352024004
M16*1.5 90 -45 5800 15 BPW
SAF
HALDEX
SD02002N02 9254700010 0 180 5900
SD02002N01 BS7402-K045570
05.444.44.02.0
05.444.44.04.0
1137409
-60 -135
SD02002N11 3/8 90 -45
24/24P SD02003 M16*1.5 90 -45 5600 15
SD02003N11 F2424DB01 Z3/8 60
24/30P SD02007 M16*1.5 90 -45 15
30/30P SD02005 M16*1.5 90 -45 8000 15

Device parameters

FAQ

  • How to deliver goods to customers?

    We usually ship by sea.  Jiaxing has an advantageous geographical location and is very close to Shanghai and Ningbo Port, making it very convenient to export by sea.  Of course, if the customer’s cargo is urgent, we can also ship it by air.

  • What is the payment method?

    FOB, CIF, DDP or other methods, select specific methods according to the specific situation, we generally pay 30% of the advance payment first, and 70% of the balance due to the bill of lading.  Most of our payment methods are T/T, of course, L/C is also acceptable.

  • How does your company guarantee product quality?

    First of all, for any newly developed product, every component must undergo strict inspections such as our performance test and life test. Secondly, during the production process, we will have corresponding inspections after each process.  For the final product, the air tightness is 100% fully inspected; Then, we have advanced and complete testing equipment in the industry: universal tensile testing machine, high and low temperature tester, static characteristic tester, life tester, water tightness test, coating tester, hardness tester, salt spray tester, vibration test Instrument, spring life tester, etc. Ensure a full range of testing requirements.

  • What are the main applications of your product?

    Our products are suitable for all commercial vehicles such as medium and heavy trucks, trailers, buses and heavy-duty construction vehicles.  Mainly include automobile trucks, construction machinery, trains and railways, mining machinery, forklifts, agricultural machinery and other industries.
