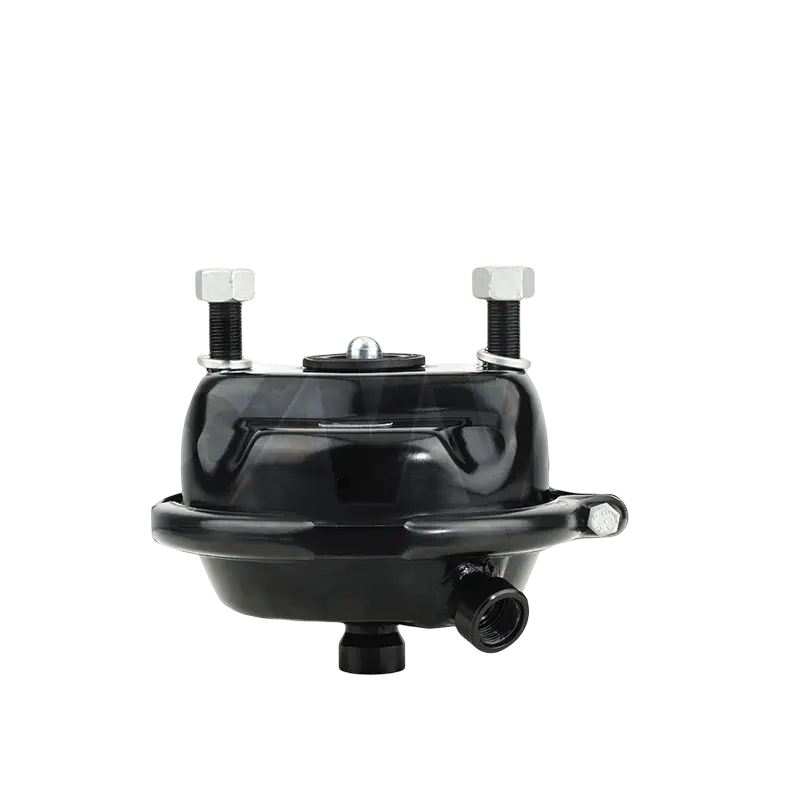

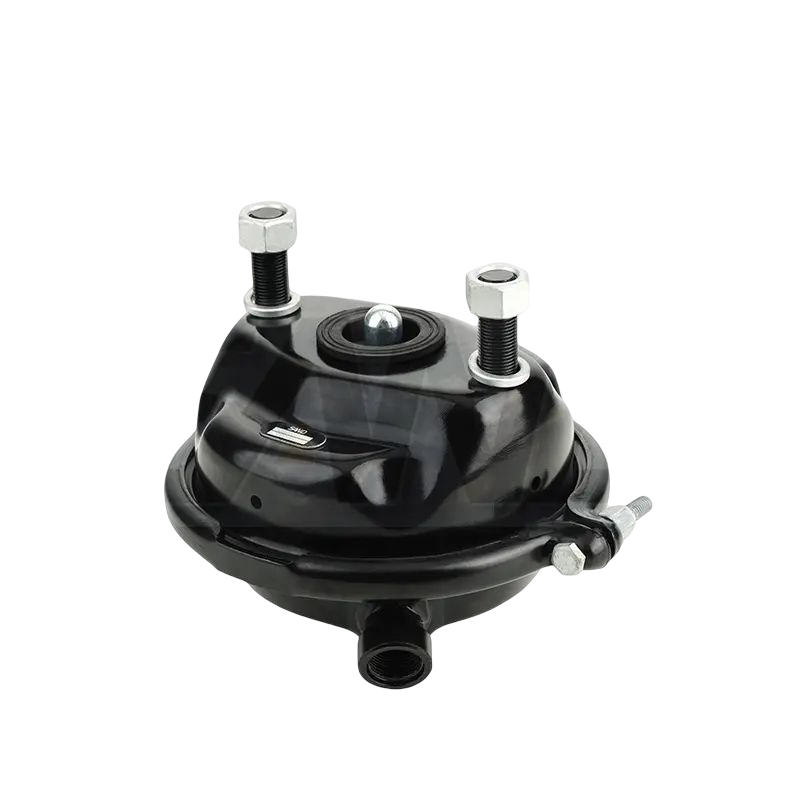

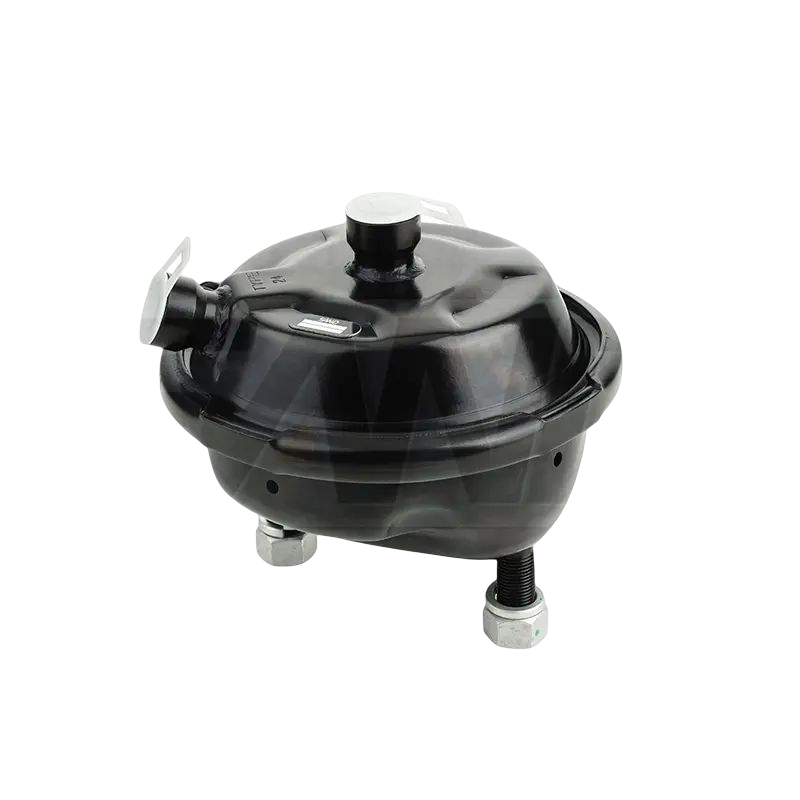

Double Ports Brake Chamber-Disc

PREV：Double Ports Long Stroke NEXT：Cross Cover2.0

better water tightness ,no water inside, so the caliper won’t be rusted and damaged, to avoid brake failure.

The center swing is less than 4 degrees, it is easy for installing.

>> Applications <<

TYPE	SD No.	Cross Ref No.	Ref No.	S STROKE	M1 side port	M2 centre port	α Port	β Clamp	L Length	Vehicle
12P2	SD01005D	BS3202-II37861	ABRA302, 1402533	64	M16*1.5	M16*1.5	0	90	15	DAF；IVECO
	SD01005D01	BS3201-II36967	4031955			M16*1.5		-45
	SD01005D04	4235030000	1392259			M16*1.5+D		180
14P2	SD01006D	4231147100	0544430020 0544430010 0203276800 0203276900 1505244 1932638	64	M16*1.5	M16*1.5+D	0	-20	15	BPW DAF SCANIA
	SD01006D02	4235140200	1373676			M16*1.5+D		180		DAF
	SD01006D03	BS3257-II36968	41031956			M16*1.5		45
16P2	SD01001D	4231047100	A0064205224 0074207424 0054202934 1505241 1932621 0203277000 0544432010 0544432020 3454106560 334652 505812866 AJV4526	64	M16*1.5+D	M16*1.5	0	-20	15	BENZ;DAF;SCANIA; BPW;SAF;KOGEL; KRONE;FRUEHAUF
	SD01001D01				M16*1.5	M16*1.5+D	45	0
	SD01001D02		220090012		M22*1.5（VOSS)	M22*1.5（VOSS)	45	0
	SD01001D06	4235040300	68323850 20361830		M16*1.5	M16*1.5	90	-45
18P2	SD01007D		BCD6001800	64	M16*1.5	M16*1.5+D	45	0	15
	SD01007D01	4231127100	544433010			M16*1.5+D	0	-20
	SD01007D03	BS3354-II36778	41031958			M16*1.5	0	45
20P2	SD01002D	4235050000	BK8503404 A0074201224 1517954 1932639 0203277500 0544434010 0544434020 3454106760 3454108260 4454106760 337900	64	M16*1.5	M16*1.5+D	0	-20	15	BENZ;MAN;DAF; SCANIA;BPW;SAF SAUER;KOGEL
	SD01002D01	4235050040	718192 4454106700		M16*1.5+D	M16*1.5	90	-90
	SD01002D10	4235051900			M16*1.5	M16*1.7+D	150	90
	SD01002D22		220090014		M22*1.5VOSS	M22*1.5VOSS	45	0
22P2	SD01008D	4231107100	0544435010 0544435020 0203277700 0203277600 A0074201324 2121531 1932635	64	M16*1.5	M16*1.5+D	0	-20	15	BPW;SAF;DAIMLER
	SD01008D01			64	M16*1.5	M16*1.5+D	45	0
	SD01008D02	BS3458-II36780	41031960	64	M16*1.5	M16*1.5	0	45
24P2	SD01003D	4235060010 4235060070	A0074201424 1517956 500590336 1932640 0203277800 0203277900 0544436010 0544436020 3454106960 337902 10218884	64	M16*1.5	M16*1.5+D	0	-20	15	BENZ;DAF IVECO;SCANIA BPW;SAF/SAUER KOGEL;LIEBHERR
	SD01003D08		718193		M16*1.5+D	M16*1.5	-45	0
	SD01003D01		220090014		M22*1.5VOSS	M22*1.5VOSS	45
	SD01003D32	BS3514			M22*1.5VOSS	M12*1.5	30
	SD01003D33	BS3515	A0084201124 A0084206624				-30
	SD01003D34	BS3522 BS3516					0	-90
	SD01003D81		F-DB01		Z3/8	Z3/8	45	90
27P2	SD01010D		BCD6002700	64	M16*1.5	M16*1.5	45	0	15
30P2	SD01004D			64	M16*1.5	M16*1.5+D	45	0	15
30P2	SD01004D01	BS3602	A0084201824 A0064201824	64	M22*1.5VOSS	M22*1.5	0	-90	15

Device parameters

FAQ

How to deliver goods to customers?

We usually ship by sea. Jiaxing has an advantageous geographical location and is very close to Shanghai and Ningbo Port, making it very convenient to export by sea. Of course, if the customer’s cargo is urgent, we can also ship it by air.
What is the payment method?

FOB, CIF, DDP or other methods, select specific methods according to the specific situation, we generally pay 30% of the advance payment first, and 70% of the balance due to the bill of lading. Most of our payment methods are T/T, of course, L/C is also acceptable.
How does your company guarantee product quality?

First of all, for any newly developed product, every component must undergo strict inspections such as our performance test and life test. Secondly, during the production process, we will have corresponding inspections after each process. For the final product, the air tightness is 100% fully inspected; Then, we have advanced and complete testing equipment in the industry: universal tensile testing machine, high and low temperature tester, static characteristic tester, life tester, water tightness test, coating tester, hardness tester, salt spray tester, vibration test Instrument, spring life tester, etc. Ensure a full range of testing requirements.
What are the main applications of your product?

Our products are suitable for all commercial vehicles such as medium and heavy trucks, trailers, buses and heavy-duty construction vehicles. Mainly include automobile trucks, construction machinery, trains and railways, mining machinery, forklifts, agricultural machinery and other industries.
